IGBT MODULE+DRIVE FS300R17KE3/AGDR-76C S; IGBT KIT

IGBT MODULE+DRIVE FS300R17KE3/AGDR-76C S; IGBT KIT

Thông tin:

ABB Type Designation: IGBT MODULE+DRIVE FS300R17KE3/AGDR-76C S
Catalog Description: IGBT MODULE+DRIVE FS300R17KE3/AGDR-76C S; IGBT KIT
Long Description: IGBT MODULE+DRIVE FS300R17KE3/AGDR-76C S
Product Net Weight: 1.1 kg

SKU: 68569362 Danh mục: Spare parts, IGBT Thẻ: igbt

Mô tả

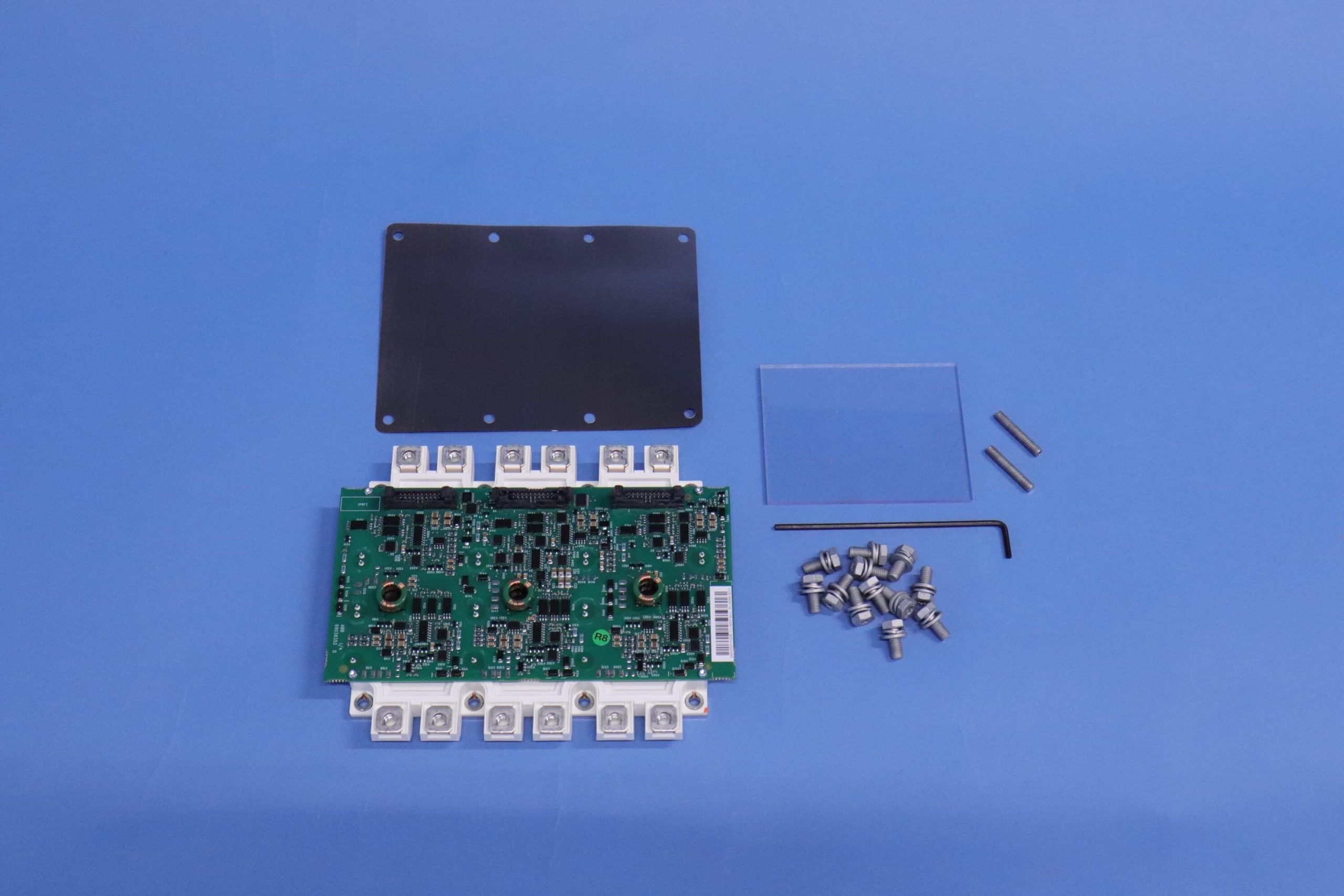

KIT include

Code	Decription	Q.ty	Unit
3AXD50000009524	PACKING, CARDBOARD OTHER	1.000	PCE
3AXD50000724666	ECONOPACK+ TIM FOIL SP; HEATING CONDUCTOR KIT	1.000	PCE
3AXD50000834556	TOOL, STEEL	1.000	PCE
3AXD50000951680	WORK INSTRUCTION	1.000	PCE
64549910	REP THE POWER MODULS	1.000	PCE

Technical

Technical Information:

1700V 300A, ECONO+

NOT IATA RESTRICTED AS PER SP A158

NOTE:

Always replace new IGBT control ribbon cables when replacing new IGBT modules to the ACS800-02/04 single drive and ACS/ACH550-02 drive.

IGBT control ribbon cables codes:

ACS800/550-X2/X4 R8 IGBT RIBBON CABLES 3pcs SP KIT: 68689023
ACS800/550-X2/X4 R7 IGBT RIBBON CABLES 3pcs SP KIT: 68689015

ACS800 Multidrive modules IGBT control ribbon cable codes:

R7i 400-690V 68869625
R8i 400-690V 2XIGBT 68870089
R8i 400-690V 3XIGBT 68692172
R7i LC 400-690V 3AUA0000031668
R8i LC 400-690V 2xIGBT 3AUA0000031400
R8i LC 400-690V 3xIGBT 3AUA0000031402

Additional Information

Product Name:

IGBT KIT

Environmental

WEEE Category:

Product Not in WEEE Scope
